Request A Free QuoteTXK Jib Crane

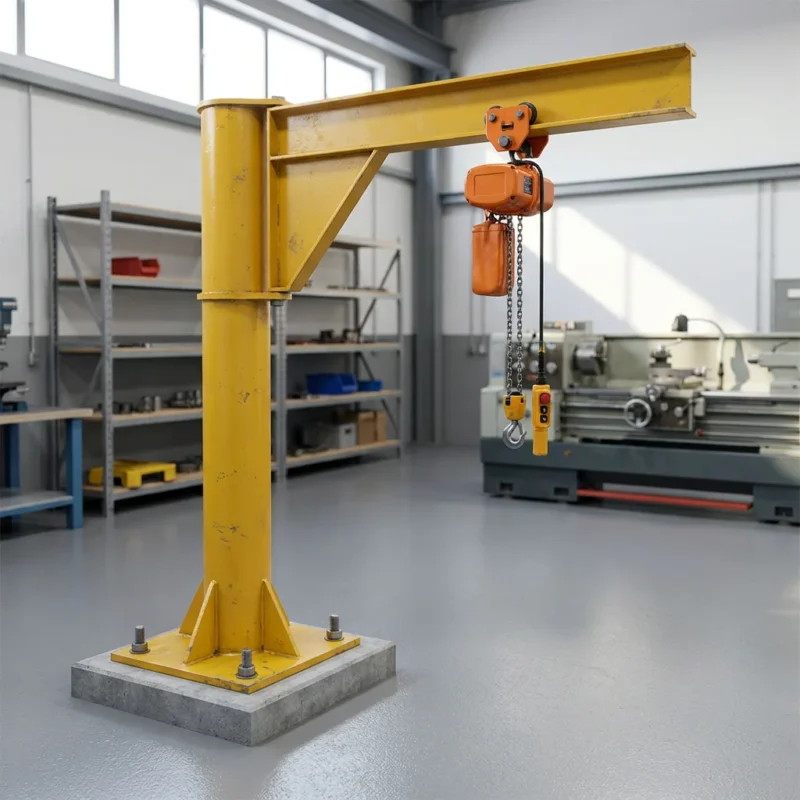

Pillar-mounted TXK jib crane that gives a workstation its own lifting point. Capacity: 500 kg~5 t, Slewing radius: 1~7 m, Lifting height: 2~10 m, Slewing angle: 180°, 270° or 360°.
| Brand | TXK |
|---|---|
| Manufacturer | Jiali Machinery Co., Ltd., China |
| Model | BZD0.5, BZ01, BZ02, BZ03, BZ05 |
| Capacity | 500 kg, 1 t, 2 t, 3 t, 5 t |
| Mounting | Pillar (floor-standing) |
| Slewing radius | 1~7 m |
| Lifting height | 2~10 m |
| Overall height | 2~10 m |
| Slewing angle | 180°, 270°, 360° |
| Slewing and trolley travel | Manual or electric (by model) |
| Arm | H-beam or KBK track |

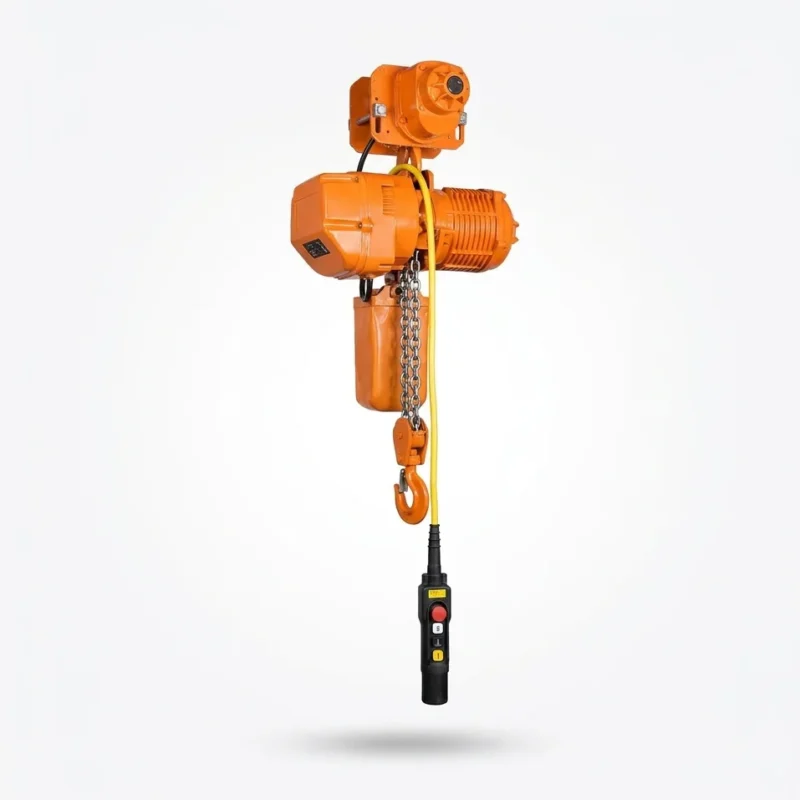

| Hoist | Electric chain hoist or wire rope hoist |
| Lifting speed (fast/slow) | 500 kg: 7.2/2.4 m/min 1 t: 6.9/2.3 m/min 2 t: 6.6/2.2 m/min 3 t: 6.6/2.2 m/min 5 t: 2.7/0.9 m/min |
| Power supply | 220~415 V, 3 phase, 50 Hz |
| Ambient temperature | -20~+40°C |
| Duty class | M4, M5, M6 |
| Certification | CE, ISO 9001 |
| Remark | ※ Wall-mounted versions available. Quote the load, radius and hook height when ordering. |
