Magicart Electric Scaffolding Lift

Electric three-section gantry lift for work at height. Rise: 3~8 m, Load-bearing: 230~350 kg, Motor power: 1.5~3 kW, Voltage: 220 V/110 V.

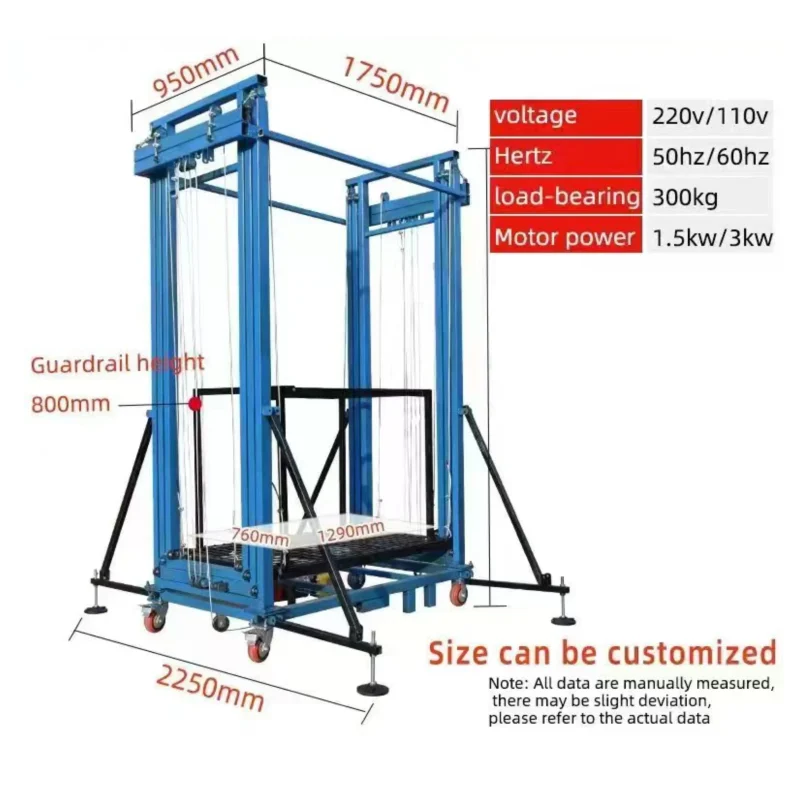

The Magicart scaffolding lift is a mobile scaffold with an electric lift. The platform runs up a three-section gantry frame, carrying the worker, tools and materials to working height, and the unit rolls on castors to the next position.

Six rise heights
Models rise 3, 4, 5, 6, 7 or 8 m. Load-bearing capacity runs from 350 kg on the 3 m model to 230 kg on the 8 m model.

Guarded platform
An 800 mm guardrail surrounds the platform. The deck is 760 × 1290 mm on 3 to 6 m models and 1080 × 1800 mm on 7 and 8 m models.

Outrigger stabilisers
Four outrigger legs with foot pads brace the frame while you work.

Electric drive
1.5 kW or 3 kW motor depending on model, for 220 V or 110 V supply at 50 Hz or 60 Hz.

Sizes to order
Frame and platform sizes can be customised.

Tell us the working height, the load you need to lift and the space available, and we will recommend the right model.
