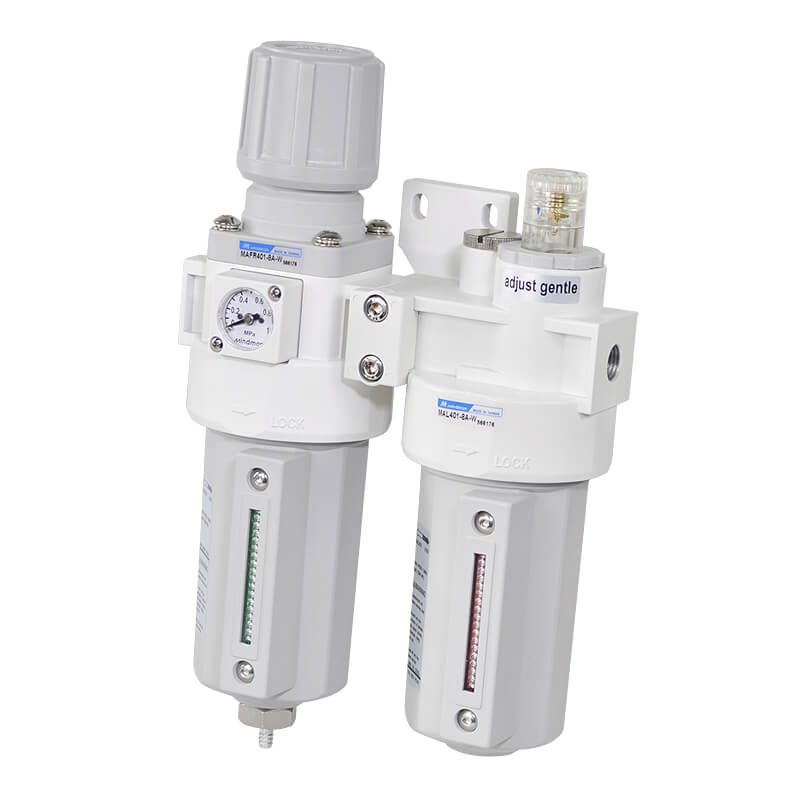

Request A Free QuoteAir Units (F.R.L.Unit) – MACP401
Components : MAFR401, MAL401, Port size: 1/4, 3/8, 1/2, Operating pressure range : 0.05~1.5 MPa, Proof pressure : 2 MPa.
| Components | MAFR401,MAL401 |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1.5 MPa |
| Proof pressure | 2 MPa |
| Regulated pressure range | Standard type: 0.1~0.85 MPa,High pressure type: 0.1~1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Filter element | Standard:40μm Option:5μm |
| Lubricating oil capacity | 200c.c |
| Min. flow for oil drip | 30 l/min~80 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge (PG-20), L-type bracket |
| Weight | 1518 g |
| Remark | ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa. |
