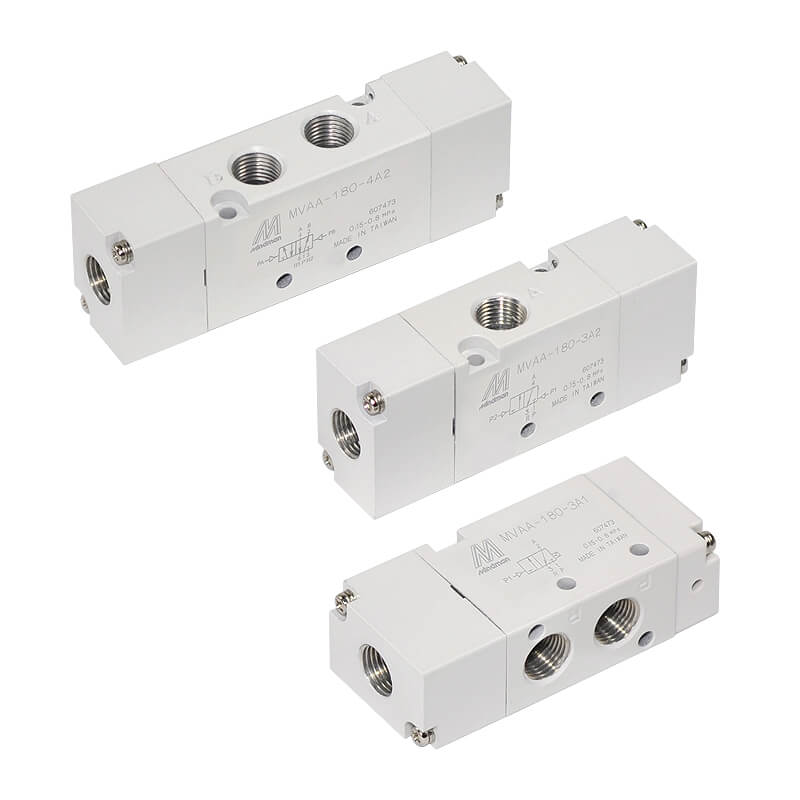

Request A Free QuotePilot valve – MVAA 180
Port size: Rc1/8, Operating pressure range:0~0.8 MPa, Proof pressure: 1 MPa.
| Bore No. | 6A |
|---|---|
| Port size | Rc1/8 |
| No. of port | 3, 5 |
| Medium | Air |
| Operating pressure range | 3A1, 3A2, 4A2: 0~0.8 MPa, 4A1: 0.15~0.8 MPa |
| Proof pressure | 1 MPa |
| Effective orifice | 12 mm2 |
| Pilot pressure range | (0.45×P※+0.1)~0.8 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Weight | 61g~84g |
| Remark | ※ P: Operating pressure. |
