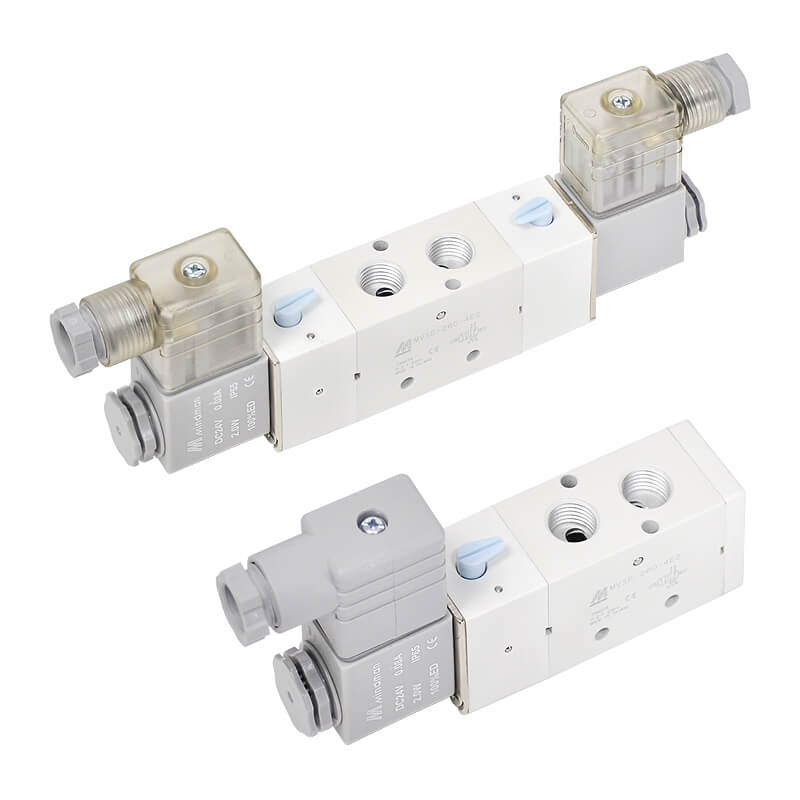

Solenoid valve – MVSE 260

Body width: 26 mm, Port size: Rc1/4, Operating pressure range: 0.2~1.2 MPa, Proof pressure: 1.5 MPa, Flow: 871, 980 l/min.

Bore No.	8A
Port size	Rc1/4
No. of port	5
No. of position	2,3
Medium	Air
Operating pressure range	0.2~1.2 MPa , 0.3~1.2 MPa (5/3)
Proof pressure	1.5 MPa
Effective orifice	18 mm2, 16 mm2 (5/3)
Response time	40 ms, 35 ms (5/3)
Ambient temperature	－5~＋50℃ (No freezing)
Voltage	AC110V, AC220V (50/60)Hz, DC24V
Power consumption	AC=6/4.9VA, DC=2W
Available voltage range	±10%
Insulation class	F class
Weight	255g, 350g, 405g
